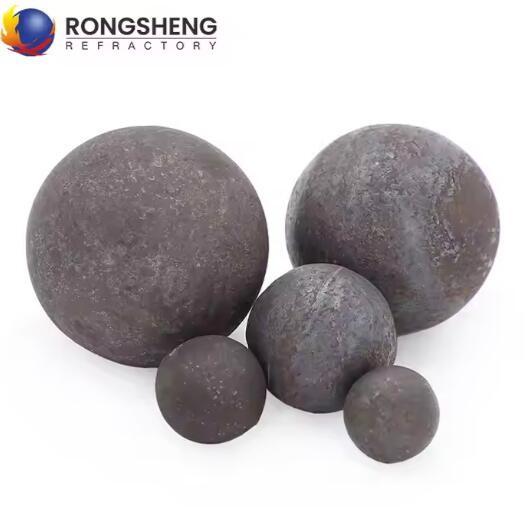

Factory Price 30mm 50mm 100mm Grinding Mining Balls Forged Steel Ball For Ball Mill

Product Categories
Zhengzhou Rongsheng Refractory Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Factory Price 30mm 50mm 100mm Grinding Mining Balls Forged Steel Ball For Ball Mill

Brand Name : RONGSHENG

Certification : ISO9001

Place of Origin : Henan, China

Usage : Liner

Weight Of Brick : 3-4KG/Pices

Aluminum Content : ≥35%

Color : White or Light Yellow

Work Temperature : 1400C

Length : 1800mm-2700mm

Dry Bulk Density : ≥2.5g/cm3

Transportation : Shipping

Carbon Content : 99%

Refractoriness Under Load : load: Min 1620°C

Package : Wooden Pallet or Carton

Keyword : low porosity fire clay brick

Crushing Strength : ≥50MPa

Cold Crushing Mpa : 350

Chemical Resistance : Excellent

Contact Now

Product descriptions from the supplier

Product Description
Our grinding balls have many excellent properties, such as high hardness, light specific gravity, high toughness, less broken, great shock-absorbing, high performance of anti-fatigue and the strong ability of shocking hardened layer. It’s widely used in the field of cement and building materials, thermal powder, the grinding mill of the beneficiation, steel and chemical industry, aerated bricks and alumina industry.
Grinding ball and grinding cylpebs are grinding media of the grinding machine. Their main function is to grind the material in the grinding machine to meet the use standard.
We can produce three types of wear-resistant steel balls: forged steel balls, cast steel balls, and hot-rolled steel balls.
CASTING GRINDING BALLS: Diameter 10mm-160mm, Hardness 46-68HRC, Breakage rate: <0.5%. The life of high chrome balls are 2-3 times of forged balls. We produce the strong microscopic structure, for good performance. FORGED GRINDING BALLS: Diameter 20mm-160mm Material-We use the high quality bar as raw material. High end heat treatment technology, guarantee the long wear life. From "tough surface" to "tough core". GRINDING CYLPEBS: Diameter 8mm-60mm. High Hardness: 45-68HRC. Low breakage: less than 0.5%. Impact toughness: more than 12J/square centimeter. Density: 7.8-7.85g/square centimeter. Impact to broken(times): more than 18000.
Product Application
Grinding steel balls are widely used in ball mills in industries such as metallurgical mines, cement and building materials, thermal power generation, flue gas desulfurization, magnetic materials, chemicals, coal water slurry, pellets, slag, ultrafine powder, fly ash, calcium carbonate, quartz sand, etc.
Specification
Diameter Tolerance and Roundness
Nominal diameter
30
40
50
60
70
80
90
Tolerance(mm)
±2
+3,-2
Roundness (%)
≤2
≤3
Nominal diameter
100
110
120
125
150
Tolerance(mm)
+4,-3
+5,-4
Roundness (%)
≤4
≤5
Chemical Composition
Brand
C(%)
Si(%)
Mn(%)
Cr(%)
Cu(%)
Mo(%)
P(%)
S(%)
Ni(%)
45#
0.42-0.50
0.17-0.37
0.5-0.80
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
40Mn
0.37-0.44
0.17-0.37
0.7-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
50Mn
0.48-0.56
0.17-0.37
0.60-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
60Mn
0.57-0.65
0.17-0.37
0.70-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
65Mn
0.62-0.70
0.17-0.37
0.90-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
70Mn
0.67-0.75
0.17-0.37
0.90-1.20
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
40Cr
0.37-0.45
0.17-0.37
0.50-0.8
0.80-1.1
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
42CrMo
0.38-0.45
0.17-0.37
0.50-0.80
0.90-1.2
0-0.03
0.15-0.25
0-0.035
0-0.035
0-0.30
70Cr2
0.65-0.75
0.20-0.30
0.75-0.90
0.55-0.70
0-0.25
0-0.30
0-0.030
0-0.030
0-0.30
40Mn2
0.37-0.44
0.17-0.37
1.4-1.8
0-0.25
0-0.25
0-0.30
0-0.035
0-0.30
0-0.30
70Mn2
0.65-0.75
0.20-0.45
1.4-1.8
0-0.25
0-0.25
0-0.30
0-0.035
0-0.030
0-0.30
B-1
0.52-0.65
0.17-0.37
0.60-1.2
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-2
0.70-0.80
0.17-0.37
0.70-0.80
0.50-0.60
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-3
0.58-0.66
1.2-1.6
0.65-0.80
0.70-0.90
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-4
0.60-0.65
1.6-1.7
0.7-0.8
0.7-0.8
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-6
0.75-0.85
0.2-0.40
0.9-1.0
0.85-0.95
0-0.25
0.06-0.13
0-0.035
02-0.035
0.06-0.13
B-6A
0.82-0.95
0.20-0.40
0.92-1.02
0.80-0.95
0-0.25
0.06-0.10
0-0.035
0-0.035
0.06-0.10
B-7
0.35-0.40
0.17-0.37
0.7-0.8
0.9-1.0
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
BU
0.95-1.05
0.17-0.37
0.9-1.10
0.40-0.60
0-0.15
0-0.05
0-0.035
0-0.035
0-0.30
Gr15
0.95-1.05
0.15-0.35
0.20-0.40
1.30-1.65
0-0.25
0-0.10
0-0.027
0-0.020
0-0.10
Technical Specification
Brand
Breakage rate
Hardness(HRC)
Impact value(J/cm²)
Drop times
Micro structure
45#
<1%
≥45
≥12
≥8000
M+C
40Mn
<1%
≥50
≥12
≥10000
M+C
50Mn
<1%
≥55
≥12
≥10000
M+C
60Mn
<1%
≥55
≥12
≥12000
M+C
65Mn
<1%
≥58
≥12
≥12000
M+C
70Mn
<1%
≥60
≥12
≥12000
M+C
40Cr
<1%
≥55
≥12
≥12000
M+C
42CrMo
<1%
≥55
≥12
≥12000
M+C
70Cr2
<1%
≥58
≥12
≥12000
M+C
40Mn2
<1%
≥55
≥12
≥12000
M+C
70Mn2
<1%
≥58
≥12
≥12000
M+C
B-1
<1%
≥55
≥12
≥12000
M+C
B-2
<1%
≥58
≥12
≥15000
M+C
B-3
<1%
≥60
≥12
≥15000
M+C
B-4
<1%
≥60
≥12
≥15000
M+C
B-6
<1%
≥60
≥12
≥15000
M+C
B-6A
<1%
≥60
≥12
≥15000
M+C
B-7
<1%
≥60
≥12
≥15000
M+C
BU
<1%
≥60
≥12
≥15000
M+C
Gr15
<1%
≥60
≥12
≥15000
M+C
Packing & Delivery
1.Professional export transport packaging 2. Packing according to customer requirements 3.Transportation: express delivery, land transportation, sea transportation, air transportation
